    • Modular duct

    SC-TR.1030.X.3B.173.Configuration 1

    To the product data

    Parts list

    Cover

    • Product details

      TR.1030.X.3B

      CHF 4'002.75

      • Consists of

      • 1 × TR.1030.R.L.3B - 314-21-3416

      • 6 × TR.1005.D.L.SB - 314-21-4411

    Shaft elements

    • Product details

      SC.1030.E.54 - Frame 100/300/54

      CHF 891.35

    • Product details

      SC.1030.E.34_3 - Frame 100/300/34 - 3 entries

      CHF 802.35

    • Product details

      SC.1030.E.34_3 - Frame 100/300/34 - 3 entries

      CHF 802.35

    • Product details

      SC.1030.E.34_3 - Frame 100/300/34 - 3 entries

      CHF 802.35

    Floor

    • Product details

      SC.1030.B Floor 100/300

      CHF 435.10

    Change product
    123×349 cm
    100×300 cm
    179.5 cm
    173 cm
    4144 kg
    141 - 180 cm
    B125 slowly passable
    TrapeX
    Individual parts
    6
    Availability
    Available
    Delivery time
    On request
    Total weight
    4144 kg
    Product number
    SW17586
    Price

    CHF 7'736.20

    plus shipping

    Only registered users can buy products or add them to projects.

    Product description

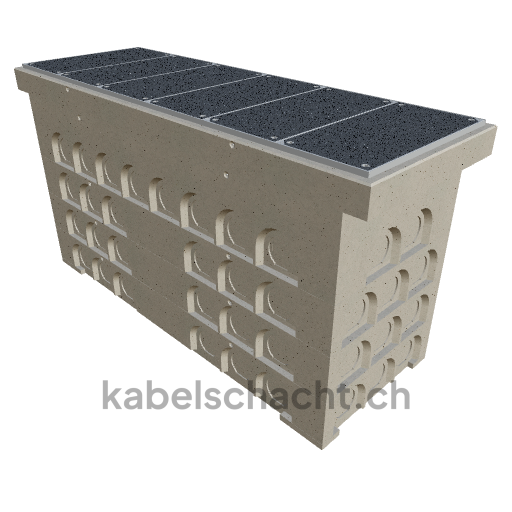

    Modular cable duct, clear width 100 x 300 cm, depth 173 cm, TrapeX cover, covering version, clear width 100 cm and clear length 300 cm, load class B125 with 6 chrome steel covers and 4 lifting openings, incl. 5 removable chrome steel crossbars, concreted up to 3 cm.
