    • Modular duct

    SC-TR.1015.X.3B.223.Config.3

    To the product data

    Parts list

    Cover

    • Product details

      TR.1015.X.3B

      CHF 2'074.25

      • Consists of

      • 3 × TR.1005.D.L.SB - 314-21-4411

      • 1 × TR.1015.R.L.3B - 314-21-3413

    Shaft elements

    • Product details

      SC.1015.E.54 - 314-21-25 - Frame 100/150/54

      CHF 446.25

    • Product details

      SC.1015.E.54 - 314-21-25 - Frame 100/150/54

      CHF 446.25

    • Product details

      SC.1015.E.54 - 314-21-25 - Frame 100/150/54

      CHF 446.25

    • Product details

      SC.1015.E.34 - 314-21-15 - Frame 100/150/34

      CHF 312.70

    • Product details

      SC.1015.E.10 - 314-21-051 - Distance 100/150/10

      CHF 257.05

    Floor

    • Product details

      SC.1015.B - 314-21-05 - Floor 100/150

      CHF 218.10

    Change product
    123×180 cm
    100×150 cm
    229.5 cm
    223 cm
    2975 kg
    221 - 250 cm
    B125 slowly passable
    TrapeX
    Individual parts
    7
    Availability
    Available
    Delivery time
    On request
    Total weight
    2975 kg
    Product number
    SW16624
    Price

    CHF 4'200.80

    plus shipping

    Only registered users can buy products or add them to projects.

    Product description

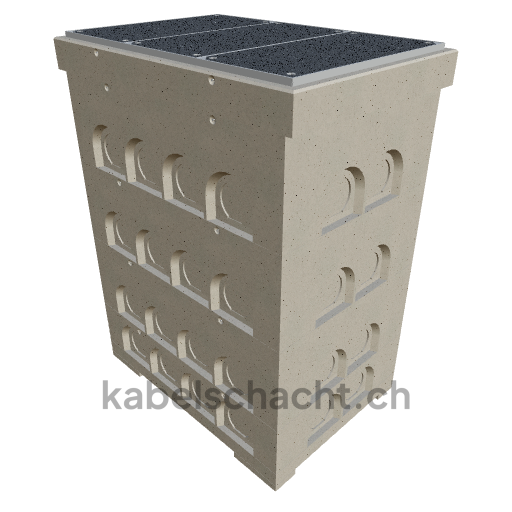

    Modular cable duct, clear width 100 x 150 cm, depth 223 cm, TrapeX cover, covering version, clear width 100 cm and clear length 150 cm, load class B125 with 3 chrome steel covers and 4 lifting openings, incl. 2 removable chrome steel crossbars, concreted up to 3 cm OK.
