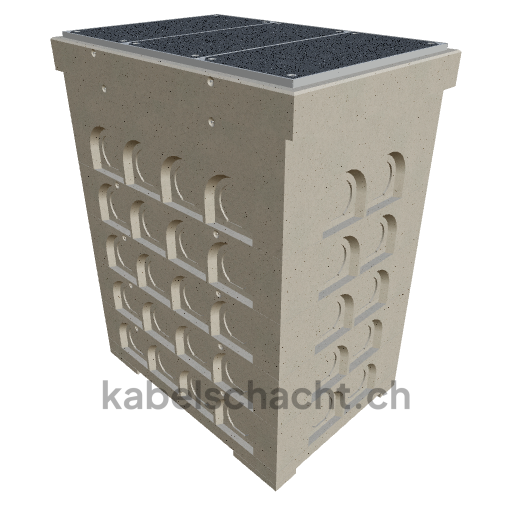

  • Modular duct

    SC-TR.1015.X.3B.217.Config.1

    Parts list

    Cover

    • Product details

      TR.1015.X.3B

      CHF 2'074.25

      • Consists of
      • 3 × TR.1005.D.L.SB - 314-21-4411

      • 1 × TR.1015.R.L.3B - 314-21-3413

    Shaft elements

    • Product details

      SC.1015.E.54 - 314-21-25 - Frame 100/150/54

      CHF 446.25

    • Product details

      SC.1015.E.34 - 314-21-15 - Frame 100/150/34

      CHF 312.70

    • Product details

      SC.1015.E.34 - 314-21-15 - Frame 100/150/34

      CHF 312.70

    • Product details

      SC.1015.E.34 - 314-21-15 - Frame 100/150/34

      CHF 312.70

    • Product details

      SC.1015.E.34 - 314-21-15 - Frame 100/150/34

      CHF 312.70

    • Product details

      SC.1015.E.10 - 314-21-051 - Distance 100/150/10

      CHF 257.05

    Floor

    • Product details

      SC.1015.B - 314-21-05 - Floor 100/150

      CHF 218.10

    123×180 cm
    100×150 cm
    223.5 cm
    217 cm
    2715 kg
    181 - 220 cm
    B125 slowly passable
    TrapeX
    Individual parts
    8
    Availability
    Available
    Delivery time
    On request
    Total weight
    2'715 kg
    Product number
    SW16618
    COâ‚‚ footprint
    1'058.55 kg COâ‚‚
    Price

    CHF 4'246.45

    plus shipping

    Only registered users can buy products or add them to projects.

    Product description

    Modular cable duct Clear width 100 x 150 cm Depth 217 cm TrapeX cover Cover version Clear width 100 and clear length 150 cm, load class B125 with 3 chrome steel covers and 4 lifting openings, incl. 2 removable chrome steel crossbars, concreted up to 3 cm OK
