    • Modular duct

    SC-TR.1010.X.3B.169.Configuration 3

    To the product data

    Parts list

    Cover

    • Product details

      TR.1010.X.3B

      CHF 1’372.10

    Shaft elements

    • Product details

      SC.1010.E.54 - 314-21-24 - Frame 100/100/54

      CHF 390.60

    • Product details

      SC.1010.E.54 - 314-21-24 - Frame 100/100/54

      CHF 390.60

    • Product details

      SC.1010.E.34 - 314-21-14 - Frame 100/100/34

      CHF 273.75

    • Product details

      SC.1010.E.10 - 314-21-041 - Distance 100/100/10

      CHF 234.80

    Floor

    • Product details

      SC.1010.B - 314-21-04 - Floor 100/100

      CHF 212.55

    Change product
    120×120 cm
    100×100 cm
    175.5 cm
    169 cm
    1857 kg
    141 - 180 cm
    B125 slowly passable
    Individual parts6
    AvailabilityAvailable
    Delivery timeOn request
    Total weight1857 kg
    Product numberSW16163
    Price

    CHF 2’874.35

    plus shipping

    Only registered users can buy products or add them to projects.

    Product description

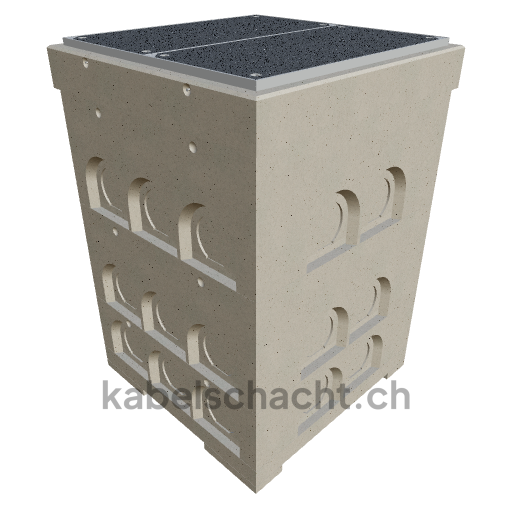

    Modular cable duct, internal dimensions 100 x 100 cm, depth 169 cm, TrapeX cover, internal width 100 cm and internal length 100 cm, load class B125 with 2 chrome steel covers and 4 lifting openings, incl. 1 removable chrome steel crossbar, concreted up to 3 cm above ground level.

    Downloads

    Please log in to download BIM data or technical drawings.
