    • Modular duct

    SC-TR.1010.X.3B.115.Config.2

    To the product data

    Parts list

    Cover

    • Product details

      TR.1010.X.3B

      CHF 1'372.10

      • Consists of

      • 2 × TR.1005.D.L.SB - 314-21-4411

      • 1 × TR.1010.R.L.3B - 314-21-3412

    Shaft elements

    • Product details

      SC.1010.E.54 - 314-21-24 - Frame 100/100/54

      CHF 390.60

    • Product details

      SC.1010.E.34 - 314-21-14 - Frame 100/100/34

      CHF 273.75

    • Product details

      SC.1010.E.10 - 314-21-041 - Distance 100/100/10

      CHF 234.80

    Floor

    • Product details

      SC.1010.B - 314-21-04 - Floor 100/100

      CHF 212.55

    Change product
    120×120 cm
    100×100 cm
    121.5 cm
    115 cm
    1410 kg
    101 - 140 cm
    B125 slowly passable
    TrapeX
    Individual parts
    5
    Availability
    Available
    Delivery time
    On request
    Total weight
    1410 kg
    Product number
    SW15205
    Price

    CHF 2'483.75

    plus shipping

    Only registered users can buy products or add them to projects.

    Product description

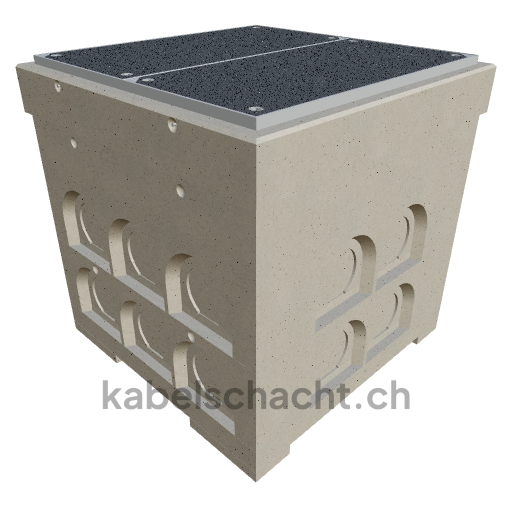

    Modular cable duct, internal dimensions 100 x 100 cm, depth 115 cm, TrapeX cover, internal width 100 cm and internal length 100 cm, load class B125 with 2 chrome steel covers and 4 lifting openings, incl. 1 removable chrome steel crossbar, concreted up to 3 cm above ground level.
