    • Modular duct

    SC-TR.0816.X.3B.135.Config.1

    To the product data

    Parts list

    Cover

    • Product details

      TR.0816.X.3B

      CHF 2'703.00

      • Consists of

      • 4 × TR.0804.D.L.SB - 314-21-4311

      • 1 × TR.0816.R.L.3B - 314-21-3314

    Shaft elements

    • Product details

      SC.0816.E.54 - Frame 80/160/54

      CHF 418.40

    • Product details

      SC.0816.E.54 - Frame 80/160/54

      CHF 418.40

    • Product details

      SC.0816.E.10 Distance 80/160/10

      CHF 275.95

    Floor

    • Product details

      SC.0816.B Floor 80/160

      CHF 218.10

    Change product
    100×180 cm
    80×160 cm
    141.5 cm
    135 cm
    1788 kg
    101 - 140 cm
    B125 slowly passable
    TrapeX
    Individual parts
    5
    Availability
    Available
    Delivery time
    On request
    Total weight
    1788 kg
    Product number
    SW18060
    Price

    CHF 4'033.90

    plus shipping

    Only registered users can buy products or add them to projects.

    Product description

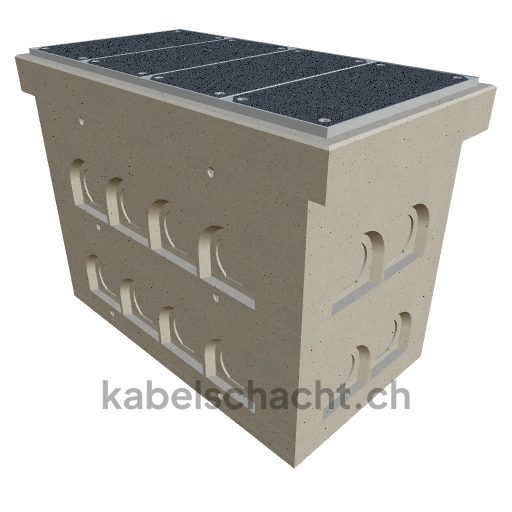

    Modular cable duct, light widths 80 x 160 cm, depth 135 cm, TrapeX cover, width in light 80 and length in light 160 cm, load class B125 with 4 chrome steel covers and 4 lifting openings, incl. 3 removable chrome steel crossbars, concreted up to 3 cm OK.
