    • Modular duct

    SC-TR.0808.X.3B.115.Config.4

    To the product data

    Parts list

    Cover

    • Product details

      TR.0808.X.3B

      CHF 1'283.05

      • Consists of

      • 2 × TR.0804.D.L.SB - 314-21-4311

      • 1 × TR.0808.R.L.3B - 314-21-3312

    Shaft elements

    • Product details

      SC.0808.E.54 - 314-21-23 - Frame 80/80/54

      CHF 329.40

    • Product details

      SC.0808.E.34 - 314-21-13 - Frame 80/80/34

      CHF 223.65

    • Product details

      SC.0808.E.10 - 314-21-031 - Distance 80/80/10

      CHF 173.60

    Floor

    • Product details

      SC.0808.B - 314-21-03 - Floor 80/80

      CHF 201.40

    Change product
    100×100 cm
    80×80 cm
    121.5 cm
    115 cm
    1181 kg
    101 - 140 cm
    B125 slowly passable
    TrapeX
    Individual parts
    5
    Availability
    Available
    Delivery time
    On request
    Total weight
    1181 kg
    Product number
    SW15832
    Price

    CHF 2'211.15

    plus shipping

    Only registered users can buy products or add them to projects.

    Product description

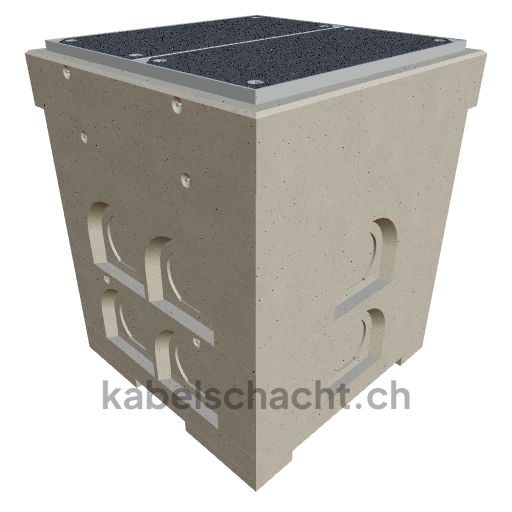

    Modular cable duct, internal dimensions 80 x 80 cm, depth 115 cm, TrapeX cover, internal width 80 cm and internal length 80 cm, load class B125 with 2 chrome steel covers and 4 lifting openings, incl. 1 removable chrome steel crossbar, concreted up to 3 cm OK.
