    • Modular duct

    SC-TR.0404.X.3B.139.Config.1

    To the product data

    Parts list

    Cover

    • Product details

      TR.0404.X.3B

      CHF 658.80

    Shaft elements

    • Product details

      SC.0404.E.54 - 314-21-21 - Frame 40/40/54

      CHF 212.55

    • Product details

      SC.0404.E.34 - 314-21-11 - Frame 40/40/34

      CHF 166.90

    • Product details

      SC.0404.E.34 - 314-21-11 - Frame 40/40/34

      CHF 166.90

    Floor

    • Product details

      SC.0404.B - 314-21-01 - Floor 40/40

      CHF 100.15

    Change product
    63×63 cm
    40×40 cm
    145.5 cm
    139 cm
    625.5 kg
    101 - 140 cm
    B125 slowly passable
    Individual parts5
    AvailabilityAvailable
    Delivery timeOn request
    Total weight625.5 kg
    Product numberSW15651
    Price

    CHF 1’305.30

    plus shipping

    Only registered users can buy products or add them to projects.

    Product description

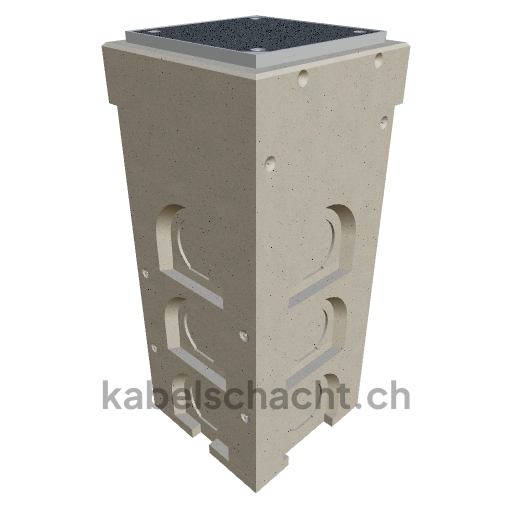

    Modular cable duct, opening dimensions 40 x 40 cm, depth 139 cm, TrapeX cover, width in opening 40 cm and length in opening 40 cm, load class B125 with 1 chrome steel cover, concreted up to 3 cm above ground level.
