    • Modular duct

    SC-SC.1020.X.54.A15.230.Configuration 2

    To the product data

    Parts list

    Cover

    • Product details

      SC.1020.X.54.A15

      CHF 1'258.60

    Shaft elements

    • Product details

      SC.1020.E.54 - 314-21-26 - Frame 100/200/54

      CHF 568.65

    • Product details

      SC.1020.E.54 - 314-21-26 - Frame 100/200/54

      CHF 568.65

    • Product details

      SC.1020.E.34_3 - Frame 100/200/34 - 3 entries

      CHF 457.35

    • Product details

      SC.1020.E.34_3 - Frame 100/200/34 - 3 entries

      CHF 457.35

    Floor

    • Product details

      SC.1020.B - 314-21-06 - Floor 100/200

      CHF 234.80

    Change product
    120×220 cm
    100×200 cm
    237 cm
    230 cm
    3336 kg
    221 - 250 cm
    A15 accessible
    Individual parts6
    AvailabilityAvailable
    Delivery timeOn request
    Total weight3336 kg
    Product numberSW16856
    Price

    CHF 3'545.40

    plus shipping

    Only registered users can buy products or add them to projects.

    Product description

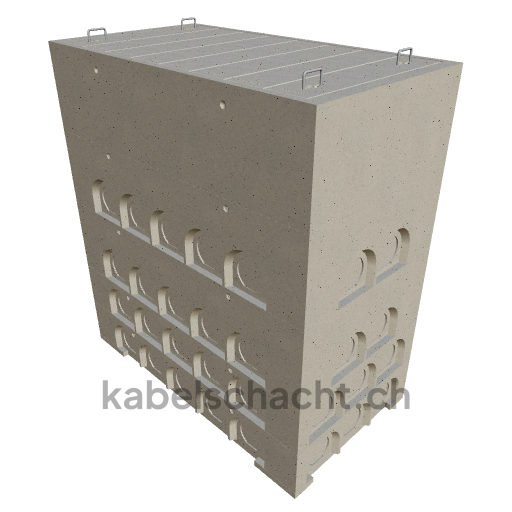

    Modular cable duct, internal dimensions 100 x 200 cm, depth 230 cm, concrete cover, internal width 100 cm and internal length 200 cm, load class A15 with 8 concrete covers, 2 including pull-out chrome steel support brackets.

    Downloads

    Please log in to download BIM data or technical drawings.
