    • Modular duct

    SC-SC.1020.X.54.A15.226.Config.1

    To the product data

    Parts list

    Cover

    • Product details

      SC.1020.X.54.A15

      CHF 1'258.60

      • Consists of

      • 4 × MT.Carrying handle - 314-30-311

      • 6 × SC.1102.D.A15 - 314-30-32 Concrete lid without hole for 100/x

      • 2 × SC.1102.D.A15.TR - 314-30-31 Concrete lid with hole for 100/x

      • 1 × SC.1020.E.54.A15 - 314-21-256 - Upper frame A15 54 cm

    Shaft elements

    • Product details

      SC.1020.E.54 - 314-21-26 - Frame 100/200/54

      CHF 568.65

    • Product details

      SC.1020.E.54 - 314-21-26 - Frame 100/200/54

      CHF 568.65

    • Product details

      SC.1020.E.54 - 314-21-26 - Frame 100/200/54

      CHF 568.65

    • Product details

      SC.1020.E.10 - 314-21-061 - Distance 100/200/10

      CHF 284.90

    Floor

    • Product details

      SC.1020.B - 314-21-06 - Floor 100/200

      CHF 234.80

    Change product
    120×220 cm
    100×200 cm
    233 cm
    226 cm
    3441 kg
    221 - 250 cm
    A15 accessible
    Individual parts
    6
    Availability
    Available
    Delivery time
    On request
    Total weight
    3441 kg
    Product number
    SW15463
    Price

    CHF 3'484.20

    plus shipping

    Only registered users can buy products or add them to projects.

    Product description

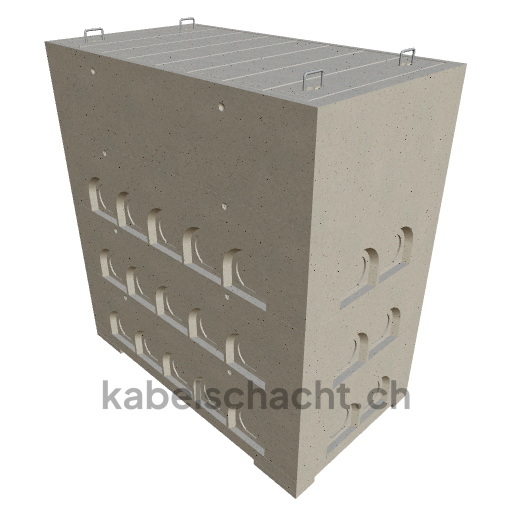

    Modular cable duct, internal dimensions 100 x 200 cm, depth 226 cm, concrete cover, internal width 100 cm and internal length 200 cm, load class A15 with 8 concrete covers, 2 including pull-out chrome steel support brackets.
