    • Modular duct

    SC-SC.1010.X.54.A15.196.Config.2

    To the product data

    Parts list

    Cover

    • Product details

      SC.1010.X.54.A15

      CHF 768.95

    Shaft elements

    • Product details

      SC.1010.E.54 - 314-21-24 - Frame 100/100/54

      CHF 390.60

    • Product details

      SC.1010.E.54 - 314-21-24 - Frame 100/100/54

      CHF 390.60

    • Product details

      SC.1010.E.34 - 314-21-14 - Frame 100/100/34

      CHF 273.75

    Floor

    • Product details

      SC.1010.B - 314-21-04 - Floor 100/100

      CHF 212.55

    Change product
    120×120 cm
    100×100 cm
    203 cm
    196 cm
    1933.5 kg
    181 - 220 cm
    A15 accessible
    Individual parts5
    AvailabilityAvailable
    Delivery timeOn request
    Total weight1933.5 kg
    Product numberSW15164
    Price

    CHF 2'036.40

    plus shipping

    Only registered users can buy products or add them to projects.

    Product description

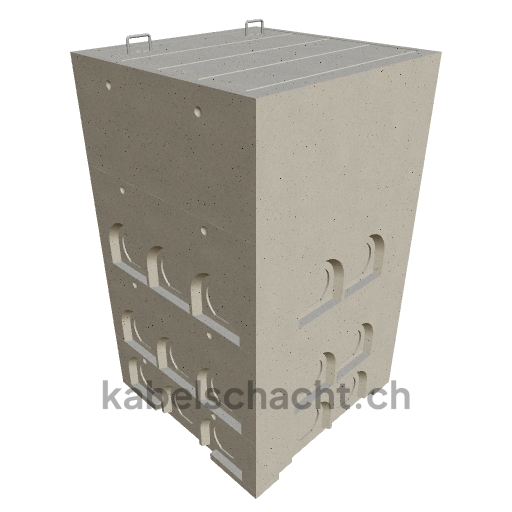

    Modular cable duct, internal dimensions 100 x 100 cm, depth 196 cm, concrete cover, internal width 100 cm and internal length 100 cm, external dimensions 120 x 120 x 57 cm, load class A15 with 4 concrete covers, 1 including pull-out chrome steel support bracket.
