    • Modular duct

    SC-SC.0816.X.15.A15.113.Config.1

    To the product data

    Parts list

    Cover

    • Product details

      SC.0816.X.15.A15

      CHF 968.15

      • Consists of

      • 4 × MT.Carrying handle - 314-30-311

      • 1 × SC.0816.E.15.A15 - 314-21-2351 - Upper frame A15 15 cm

      • 3 × SC.0903.D.A15 - 314-30-34 Concrete lid without hole for 80/x

      • 2 × SC.0903.D.A15.TR - 314-30-33 Concrete lid with hole for 80/x

    Shaft elements

    • Product details

      SC.0816.E.54 - Frame 80/160/54

      CHF 418.40

    • Product details

      SC.0816.E.34 - Frame 80/160/34

      CHF 359.45

    • Product details

      SC.0816.E.10 Distance 80/160/10

      CHF 275.95

    Floor

    • Product details

      SC.0816.B Floor 80/160

      CHF 218.10

    Change product
    100×180 cm
    80×160 cm
    119 cm
    113 cm
    1274 kg
    101 - 140 cm
    A15 accessible
    Stainless steel/concrete
    Reinforced concrete
    Individual parts
    5
    Availability
    Available
    Delivery time
    On request
    Total weight
    1274 kg
    Product number
    SW18017
    Price

    CHF 2'240.05

    plus shipping

    Only registered users can buy products or add them to projects.

    Product description

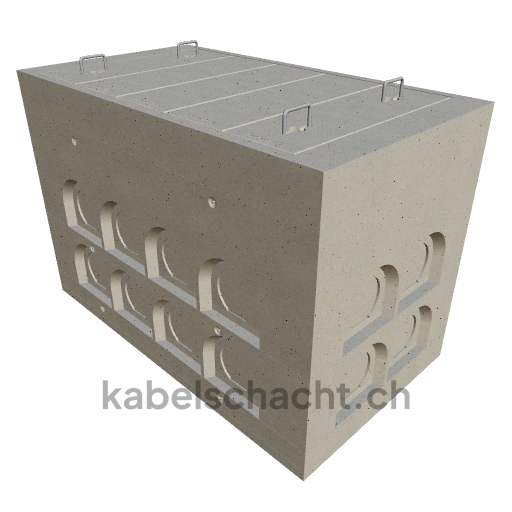

    Modular cable duct, internal dimensions 80 x 160 cm, depth 113 cm, concrete cover, internal width 80 cm and internal length 160 cm, load class A15 with 5 concrete covers, 2 including pull-out chrome steel support brackets.
