    • Modular duct

    SC-SC.0808.X.15.A15.161.Configuration 1

    To the product data

    Parts list

    Cover

    • Product details

      SC.0808.X.15.A15

      CHF 580.90

      • Consists of

      • 1 × SC.0808.E.15.A15 - 314-21-2351 - Upper frame A15 15 cm

      • 2 × MT.Carrying handle - 314-30-311

      • 2 × SC.0903.D.A15 - 314-30-34 Concrete lid without hole for 80/x

      • 1 × SC.0903.D.A15.TR - 314-30-33 Concrete lid with hole for 80/x

    Shaft elements

    • Product details

      SC.0808.E.34 - 314-21-13 - Frame 80/80/34

      CHF 223.65

    • Product details

      SC.0808.E.34 - 314-21-13 - Frame 80/80/34

      CHF 223.65

    • Product details

      SC.0808.E.34 - 314-21-13 - Frame 80/80/34

      CHF 223.65

    • Product details

      SC.0808.E.34 - 314-21-13 - Frame 80/80/34

      CHF 223.65

    • Product details

      SC.0808.E.10 - 314-21-031 - Distance 80/80/10

      CHF 173.60

    Floor

    • Product details

      SC.0808.B - 314-21-03 - Floor 80/80

      CHF 201.40

    Change product
    100×100 cm
    80×80 cm
    167 cm
    161 cm
    1368.5 kg
    141 - 180 cm
    A15 accessible
    Individual parts
    7
    Availability
    Available
    Delivery time
    On request
    Total weight
    1368.5 kg
    Product number
    SW15780
    Price

    CHF 1'850.60

    plus shipping

    Only registered users can buy products or add them to projects.

    Product description

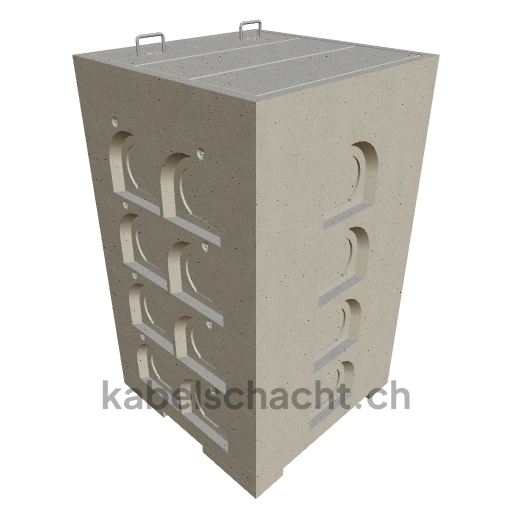

    Modular cable duct, internal dimensions 80 x 80 cm, depth 161 cm, concrete cover, internal width 80 cm and internal length 80 cm, load class A15 with 3 concrete covers, 1 including pull-out chrome steel support bracket.
